Industrial and Commercial IoT Gas Meter
This product integrates the traditional membrane gas meter, intelligent control module and low-power IoT module to form a new generation of intelligent metering meter.
This product integrates the traditional membrane gas meter, intelligent control module and low-power IoT module to form a new generation of intelligent metering meter. The accurate metering and built-in motor valve can effectively solving malicious non-payment. IoT technology can report the gas consumption information recorded by the meter and the meter operation status to the background management system at regular intervals, which helps gas companies to refine the management of the meter.
Gas safety: when the meter detects an abnormal flow or no gas usage for a long time, it can automatically shut off the valve and report to ensure the safety of gas consumption at the first time.
Intelligent billing: with the adoption of the IoT technology, it supports the tiered gas price, remote price adjustment and remote bill payment, and supports multiple payment methods
Customer service: by analyzing the data uploaded by meters, users can effectively understand the gas consumption situation of customers, so as to provide better services to customers.
Meter monitoring: when the meter identifies undervoltage, magnetic interference or power failure, it will actively close the valve and report the meter status. The backend system can remotely monitor the anomaly of the meter and solve it in time.
Protection class: the meter adopts a unique design, and the protection class of the housing reaches up to IP65.
|
TECHNICAL PARAMETERS |
||||
|
Item content |
Parameter index |
|||
|
Specifications and models |
G6 |
G10 |
G16 |
|
|
Maximum flow rate (m3/h) |
10 |
16 |
25 |
|
|
Minimum flow rate (m3/h) |
0.06 |
0.10 |
0.16 |
|
|
Slewing volume (dm3) |
2.5 |
5 |
8 | |
|
Measurement class |
Class 1.5 |
|||
|
Pressure loss (Pa) |
≤250 |
＜375 |
||
|
Maximum working pressure (KPa) |
≤30 |
|||
|
Working temperature (℃) |
-10 ~ +40 |
|||
|
Relative humidity |
<95%RH |
|||
|
Atmospheric pressure (KPa) |
86~106 | |||
|
Valve |
Built-in motor valve |
|||
|
Power supply mode |
|
Alkaline battery (6V)/lithium battery(3.6V) |
|
|
|
Battery service life |
|
≥12 months/≥10 years |
|
|
|
Protection class |
|
IP65 |
||
|
Explosive-proof grade |
|
Ex ib II B T3 Gb |
||
|
Communication mode |
|
NB-loT/LoRa/infrared |
|
|
|
Industrial and Commercial IoT Gas Meter |
||||||||
|

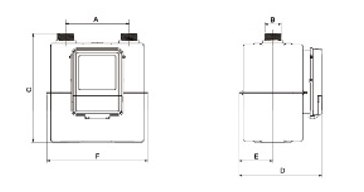

DIMENSIONS |
|
|||||||
|
—— |
||||||||
|
|
||||||||
|
Model |
A |
B |
C |
D |
E |
F |
||
|
G6 |
160 |
G1¼ |
274 |
208 |
85 |
254 |
||
|
G10 |
200 |
G2 |
328 |
230 |
96 |
316 |
||
|
G16 |
240 |
G2 |
375.5 |
252 |
107 |
355.5 |
||
|
Unit: mm |
||||||||
|
|
||||||||
