IoT Gas Meter for Civil Use
This product integrates the traditional membrane gas meter, intelligent control module and low-power IoT module to form a new generation of intelligent metering meter.
This product integrates the traditional membrane gas meter, intelligent control module and low-power IoT module to form a new generation of intelligent metering meter. The IoT gas meter can report the gas consumption information and meter operation status recorded by the meter to the background management system at regular intervals, which is convenient for the gas company to manage the meter in a refined manner.
Gas use safety: when the meter detects an abnormal flow or no gas usage for a long time, it can automatically shut off the valve and report to ensure gas safety at the first time.
Intelligent billing: with the adoption of the IoT technology, it supports the tiered gas price, remote price adjustment and remote bill payment, and supports multiple payment methods
Customer service: by analyzing the data uploaded by meters, users can effectively understand the gas consumption of customers and provide better service to customers.
Meter monitoring: When the meter identifies under-voltage, magnetic interference or power failure, it will actively shut off the valve and report the meter status, and the background system can remotely monitor the anomaly of the meter and solve it in time.
Protection class: the meter adopts unique design, the protection class of the housing reaches up to IP65
|
TECHNICAL PARAMETERS |
|||
|
Item content |
|
Parameter index |
|
|
Specifications and models |
G1.6 |
G2.5 |
G4 |
|
Maximum flow rate (m3/h) |
2.5 |
4 |
6 |
|
Minimum flow rate (m3/h) |
0.016 |
0.025 |
0.04 |
|
Slewing volume (dm3) |
|
1.2 |
|
|
Measurement class |
|
Class 1.5 |
|
|
Pressure loss (Pa) |
|
≤250 |
|
|
Maximum working pressure (KPa) |
|
≤30 |
|
|
Working temperature (℃) |
|
-10~+40 |
|
|
Relative humidity |
|
≤95%RH |
|
|
Atmospheric pressure (KPa) |
|
86 ~ 106 |
|
|
Valve |
|
Built-in motor valve |
|
|
Power supply mode |
|
Alkaline battery (6V)/lithium battery(3.6V) |
|
|
Battery service life |
|
≥12 months/≥10 years |
|
|
Protection class |
|
IP65 |
|
|
Explosive-proof grade |
|
Ex ib II B T3 Gb |
|
|
Communication mode |
|
NB-loT/LoRa/infrared |
|
a. Abnormal flow: intelligently identify the measurement anomaly and shut off the valve
b. Anti-reverse flow: prevent the meter from being installed backwards and the counter from reversing
c. Settlement mode: flexible choice of meter end billing or background settlement mode
d. Historical data storage: record the hourly consumption, daily consumption, monthly consumption
e. Other functions: support tiered gas pricing, remote meter reading, remote valve control, abnormal state active alarm, remote meter upgrade, etc.
|
IoT Gas Meter for Civil Use |
|||||||
|

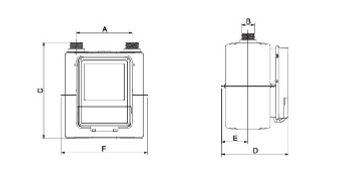

DIMENSIONS |
|||||||
|
—— |
|||||||
|
|
|||||||
|
Model |
A |
B |
C |
D |
E |
F |
|
|
G1.6 |
130 |
W30*2 |
224 |
156 |
68 |
205 |
|
|
G2.5 |
|||||||
|
G4 |
|||||||
|
Unit: mm |
|||||||
|
|
|||||||
