RWN100 Data Collector
The data collector is suitable for the integrated application of water meters, heat meters and other terminal devices.
The data collector is suitable for the integrated application of water meters, heat meters and other terminal devices. With the NB-IoT technology, it transmits the metering and status data of meters to platforms of water and heat supply companies, which meets the demands of customers' fine management and reduces their operation costs.
Reliable communication: NB-IoT communication technology, low power consumption, wide coverage, remote maintainable
Ultra-protection: IP68 protection class, suitable for complex industrial sites
Flexible application: the complete equipment is small and good-looking, and it can be installed flexibly, it adapts to a variety of complex environments and supports on-site commissioning
Complete functions: it has the function of timed reporting, manual reporting, immediate alarm, network time calibration, local commissioning, etc.
Good compatibility: the downstream meter reading is a standard RS-485 interface, compatible with ultrasonic water meters and ultrasonic heat meters with various protocols and has good expandability
|
〇 Technical parameters |
|
|
Performance |
Parameters |
|
Working power supply |
Power supply by 3.6V lithium battery |
|
Communication mode |
NB-loT network |
|
Infrared interface |
Baud rate 2400bps, adopting EN13757 protocol |
|
RS-485 interface |
Baud rates of 2400, 4800 and 9600 are optional, 2400 by default. No check, odd check and even check are optional, no check by default |
|
Data storage |
Capable of storing 8000 entries of instrument data |
|
Protection class |
IP68 |
|
Working ambient temperature |
-20°~55°C |
|

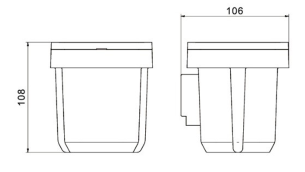

〇 Overall dimensions (mm) |
|
|
|
|
